About this item

• Onboard Interface: 1 x 24-pin ATX Power Connector, 1 x 4-pin ATX 12 V Power Connector, 2 x USB Connectors, can support 4 x USB 2.0, 1 x F_Audio Connector, 1 x F_Panel Connector, 1 x Speaker_Connector, 2 x FAN connectors, 4 x Serial ATA connection port, 1 x 40-pin IDE port.
• Integrated Sound: with 6-channel HD Audio codec Onboard provides front audio interface; provides front stereo mic interface. Integrated LAN: with 10/100 Mbps LAN Onboard. Expansion Slot: 1 x PCI Express x 16 Slot, 1 x PCI Slot, conformed to PCI v 2.3 specification. Dimension: Micro-ATX architecture (172*235mm)

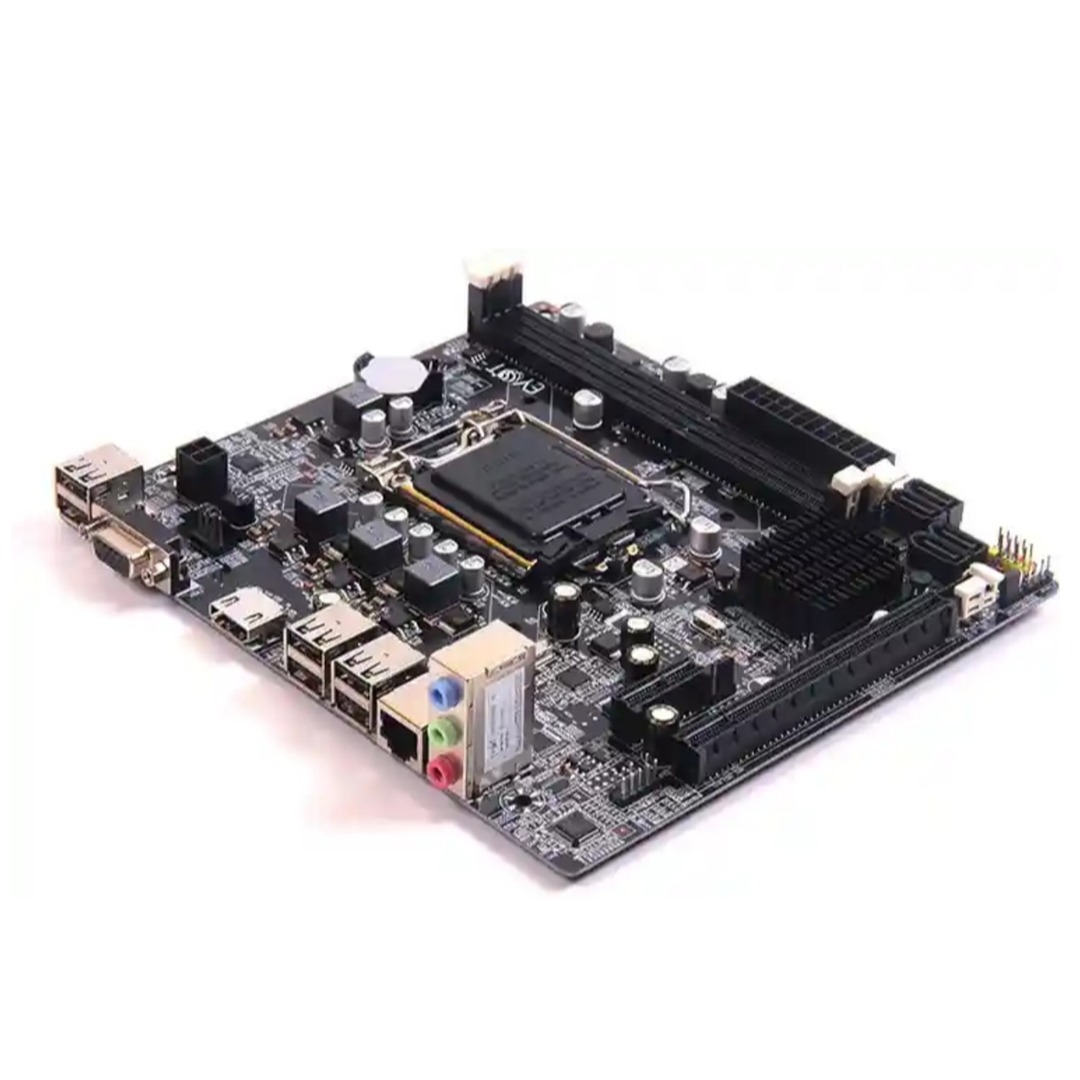

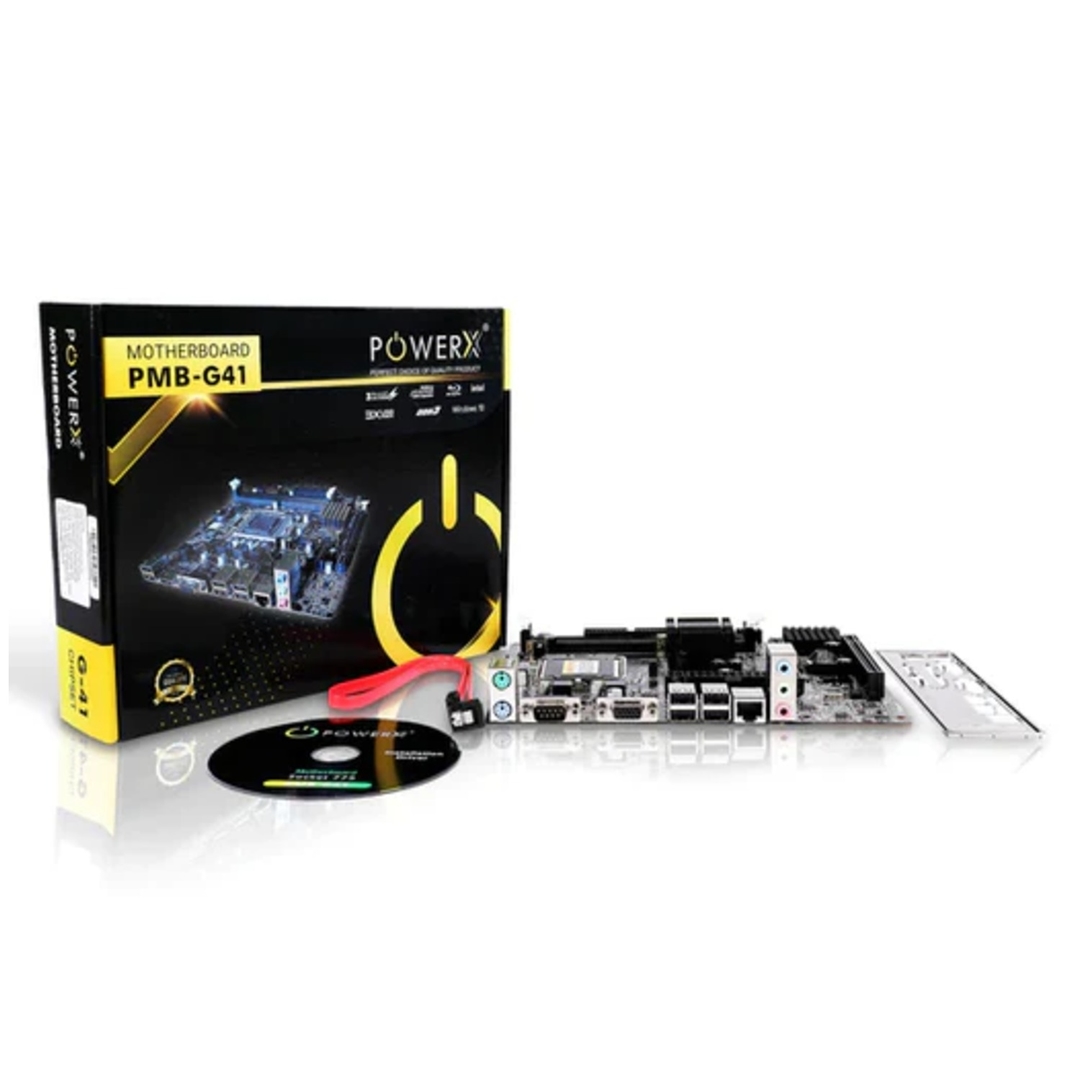

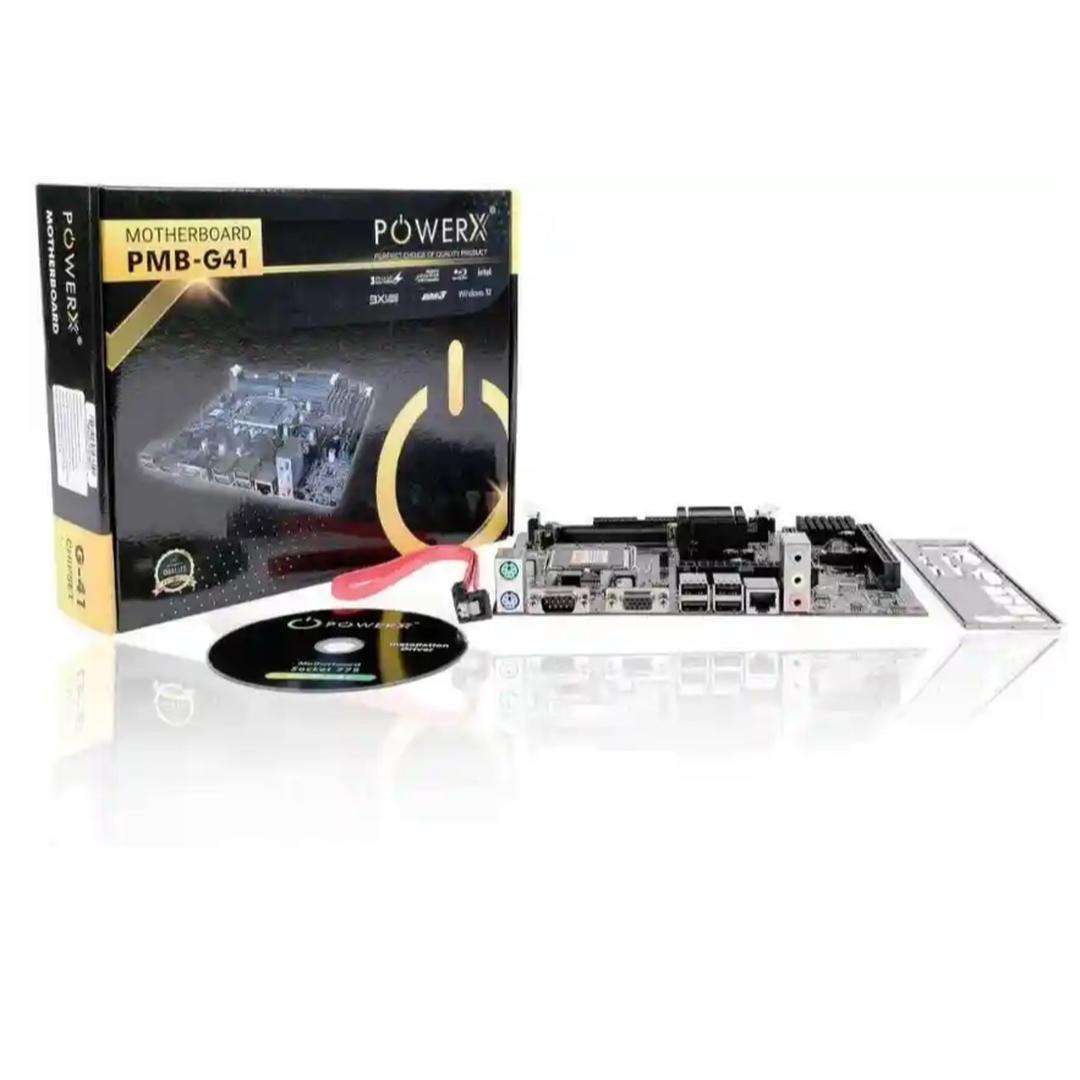

•  Brand: PowerX, Model: PMB - G41, Supports LGA775 CPU, Supports FSB 533/800/1066/1333 MHZ CPU, Chipset: Intel 82G41 + 82801GB Supports GMAX 4500 Graphics, Memory: 2*240-pin DDR III SDRAM Slots Memory upto 8GB Supports dual-channel DDR3 800MHz/ 1066MHz Memory

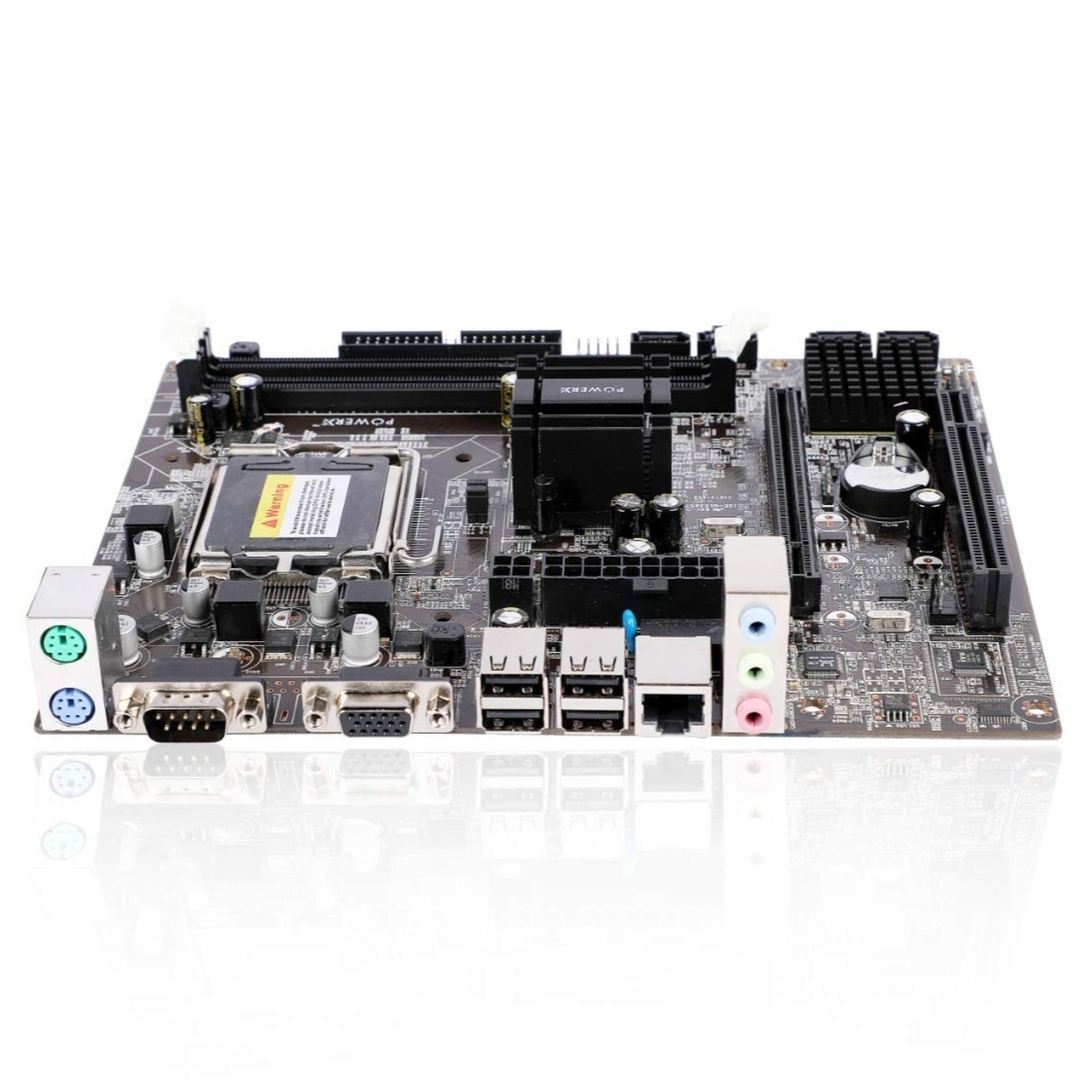

• I/O Interface: 1 x PS/2 Keyboard Port, 1 x PS/2 Mouse Port, 1 x COM. 1 x VGA, 4 x USB 2.0, compatible with USB 1.1, 1 x RJ45, 1 x 3 in 1 Audio Port( Line in, Line out, Mic in).
• The LGA775 socket on Motherboard supports Intel CPUs from 1.8 to 3.8 GHz with Front-Side Bus frequencies ranging from 533 MHz to 1333 MHz, as the G41 chipset capable to handle embedded computing applications needing HD video playback and 3D graphics.
