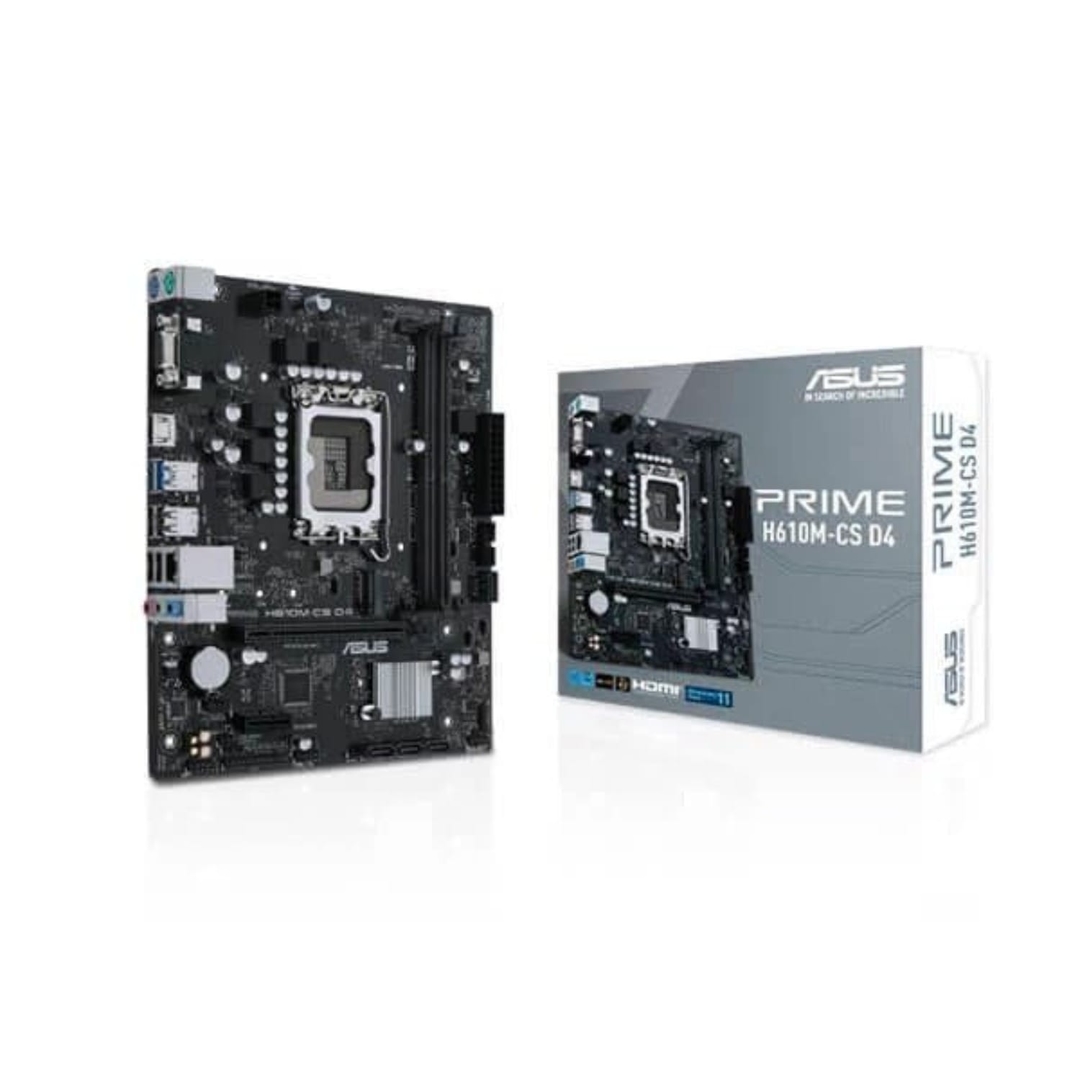

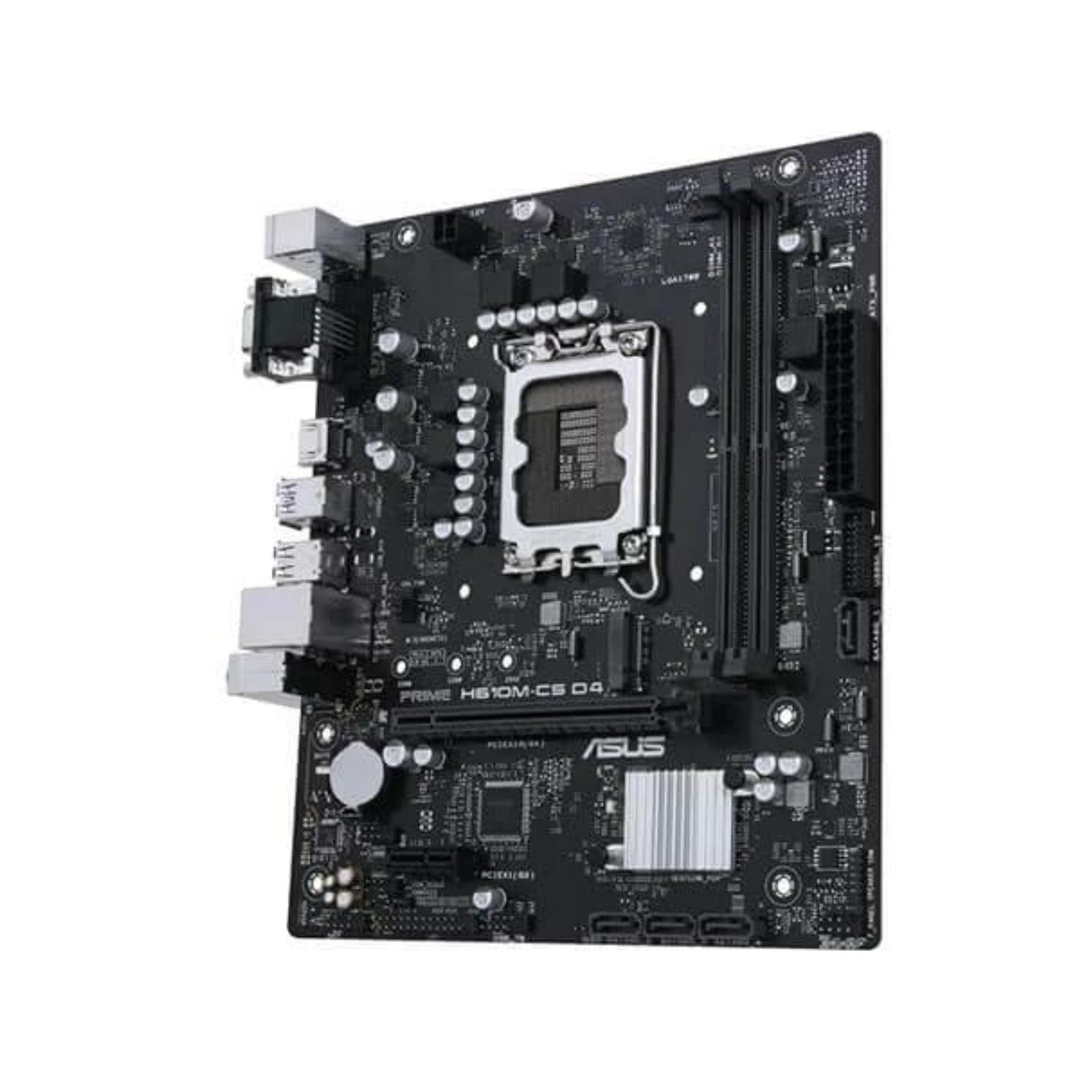

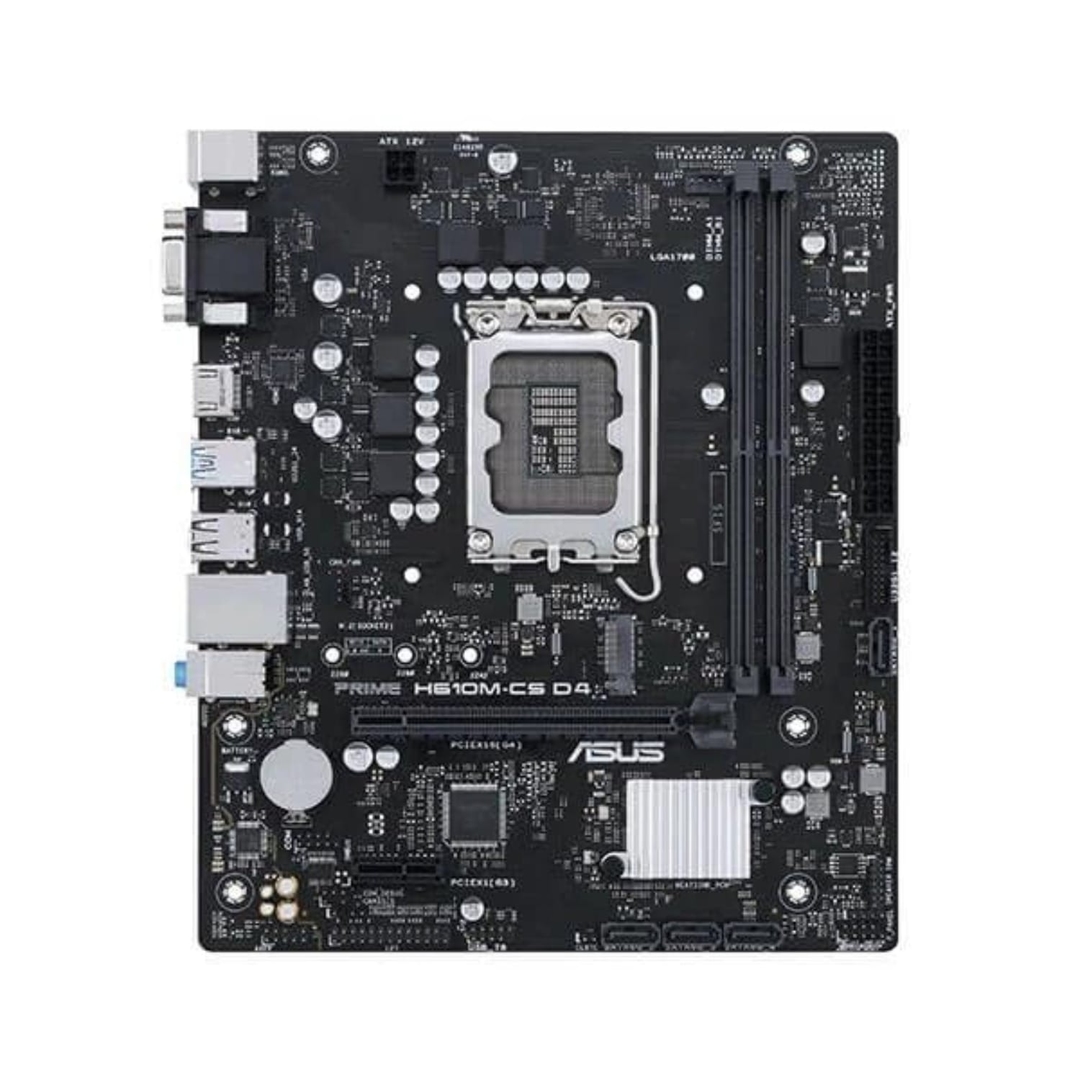

MOTHERBOARD ASUS PRIME H610M-CS D4
MOTHERBOARD ASUS PRIME H610M-CS D4 :
Features
- Intel® LGA 1700 socket:Ready for 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- 5X Protection III: Multiple hardware safeguards for all-round protection
- Luminous anti-moisture coating: Keep key components from moisture and corrosion
PRIME
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
Specification
| CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel H610 Chipset |
| Memory | 2x DIMM Max 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Supports Intel® Extreme Memory Profile (XMP) |
| Graphics | 1x D-Sub
1x HDMI port |
| Expansion Slots | Intel® 12th Gen Processors
1 x PCle 4.0 x16 slot |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |

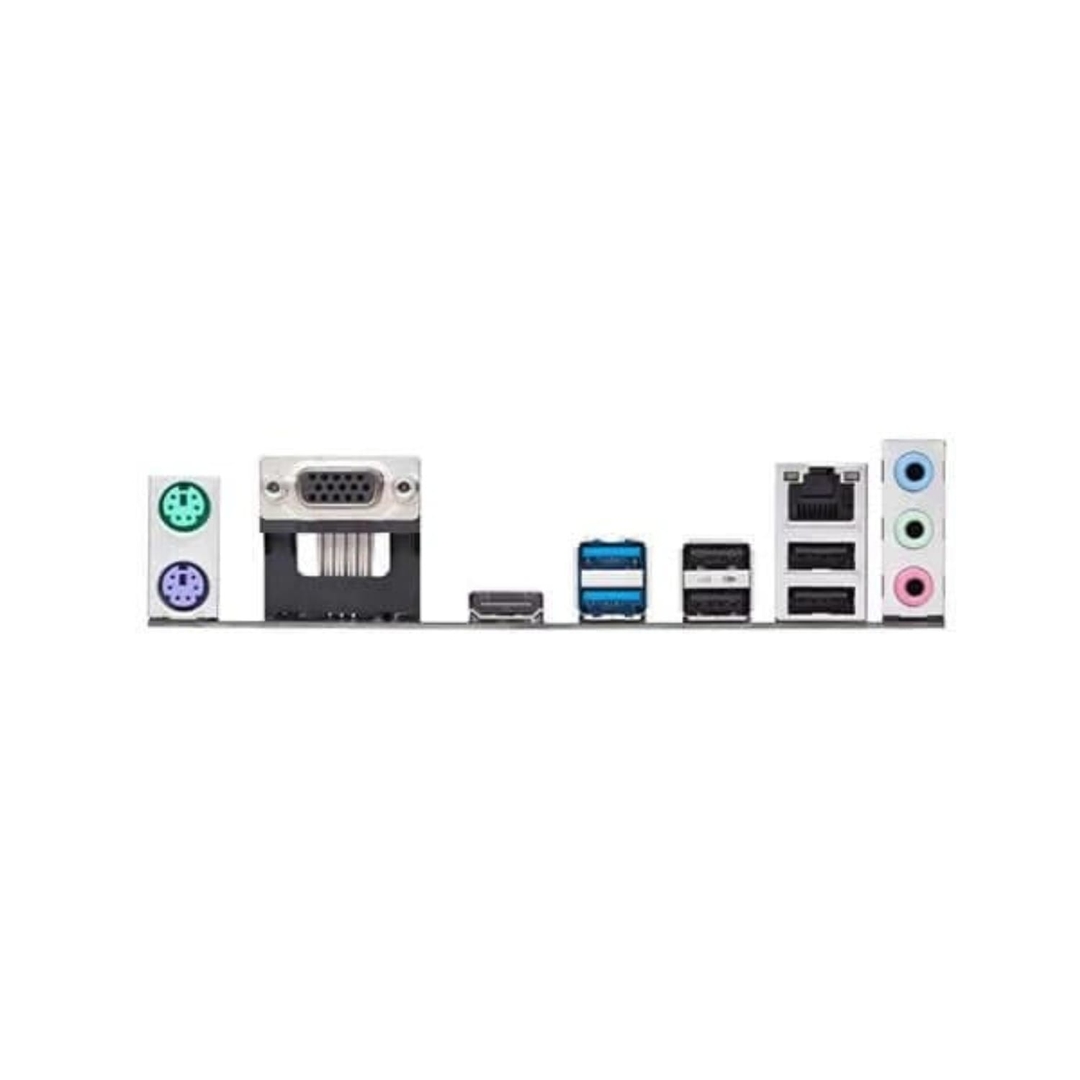

| Back Panel I/O Ports | 2x USB 3.2 Gen 1 ports (2 x Type-A) , 4x USB 2.0 ports (4x Type-A) , 1 x D-Sub port , 1 x HDMI port , 1x Realtek 1Gb Ethernet port , 3x Audio jacks , 1 x PS/2 Keyboard (purple) port , 1x PS/2 Mouse (green) port |
| BIOS | UEFI BIOS |
| Operating System | Windows 11 x64, Windows 10 x64 |
| Form Factor | micro-ATX |
| Warranty | 3 Years |
