MOTHERBOARD ASUS PRIME H510M-E R2.0
MOTHERBOARD ASUS PRIME H510M-E R2.0 :
Intel® H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, DisplayPort/ HDMI™/VGA, USB 3.2 Gen 1 ports, SATA 6 Gbps, AURA Addressable Gen 2 headers, AURA SYNC, Armoury Crate, Q-LED Core
- Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors

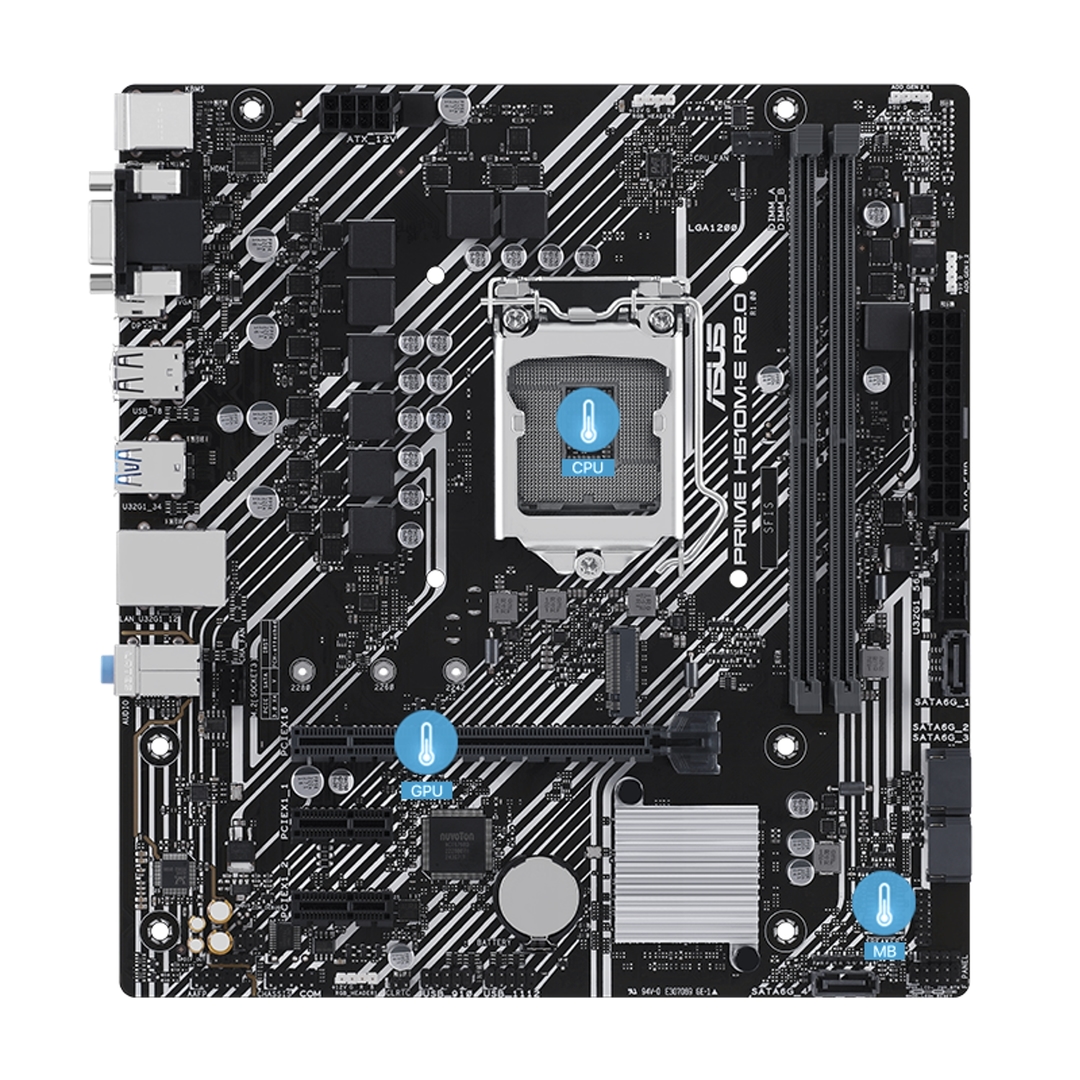

- Comprehensive cooling: PCH heatsink and Fan Xpert
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 3.2 Gen 1
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
- 5X Protection III: Multiple hardware safeguards for all-round protection
Specification
|
CPU |
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
|
Chipset |
Intel® H470 Chipset |
|
Memory |
2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
|
Graphics |
1 x DisplayPort 1.4** 1 x VGA 1 x HDMITM 2.1*** |
|
Expansion Slots |
Intel® 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot 2 x PCIe 3.0 x1 slots |
|
Storage |
Total supports 1 x M.2 slot and 4 x SATA6Gb/s ports Intel® H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
Ethernet |
1 x Realtek 1Gb Ethernet |
|
USB |
Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* |
|
Software Features |
ASUS Exclusive Software Armoury Crate ,AI Suite 3 ,TurboV EVO , EPU ,DIGI+ VRM ,Fan Xpert , ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) ,WinRAR UEFI BIOS ASUS EZ DIY |
|
Special Features |
ASUS 5X PROTECTION III - DIGI+ VRM , LANGuard , Overvoltage Protection , SafeSlot Core ,Stainless-Steel Back I/O ASUS Q-Design Q-DIMM , Q-LED Core ,Q-Slot AURA Sync AURA RGB headers , Addressable Gen 2 RGB headers |
|
Accessories |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User manual |
|
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
|
Manageability |
WOL by PME, PXE |
|
Accessories |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Documentation 1 x User guide |
|
Operating System |
Windows® 10 64-bit |
|
Form Factor |
mATX Form Factor 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm ) |
|
Warranty |
3 Years |
